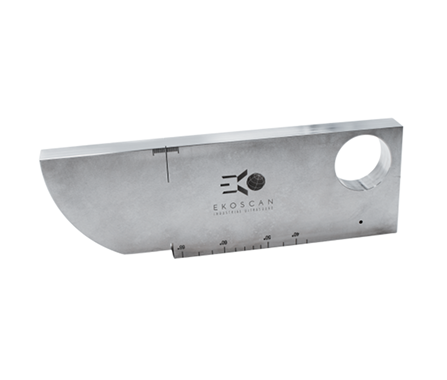

BLOCK V1

BLOCK V1 - EKOSCAN

BLOCK V1 Calibration blocks certified for ISO 2400. It can be used to determine the probe exit point and beam angle.

The values are read straight on the block.

BLOCK V1 Features:

• CAL1A
  Carbon steel calibration block n°1 certified to calibrate shear and longitudinal wave probes. It can be used to determine the probe exit point and beam angle. The values are read straight from the block drill hole: depth 15mm, diameter 3mm.
• CAL1I
  Universal stainless steel calibration block n°1 certified NF EN ISO 2400 to calibrate shear and longitudinal wave probes. It can be used to determine the probe index point and beam angle. The values are read straight on the block.
• CAL1AL
  Universal aluminum calibration block n°1 certified NF EN ISO 2400 to calibrate shear and longitudinal wave probes. It can be used to determine the probe index and beam angle. The values are read straight on the block.
